Very much sports facilities are equipped with synthetic coverings. The advantages of these coverings like antislipness, elasticity, water permeability, reduced accident risk will lose their effectiveness within a few years without care due to penetration of dirt particles and alga forming.

We developed our athletic track cleaner for high pressure cleaning with pick up of dirty water in one stage as a combination for assembly to compact and narrow gauge tractors.

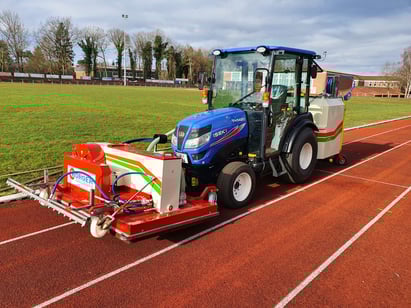

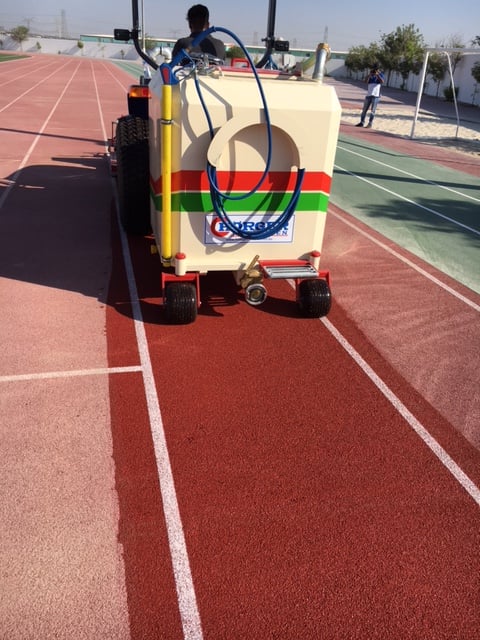

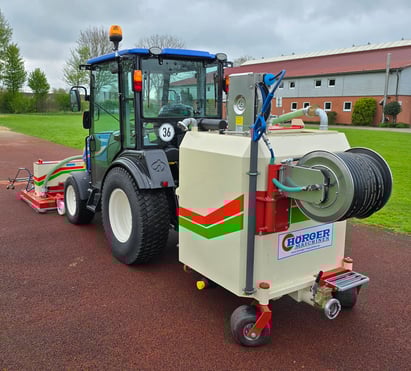

The athletic track cleaner consists of a cleaning unit to be assembled at the front of the tractor and a tank pump unit for rear assembly. The rear tank is diveded into a fresh water part and a dirty water part. The fresh water is sucked in by a high pressure pump, which is driven by a drive shaft, and carried via hoses to the front cleaning unit.


Here, the water is effectively brought to the bottom by 4 nozzles that are fastened at two circling rotors. At the same time the front cleaning unit is set under vacuum and the water with the removed dirt is taken up. Through an injection pump the dirty water is carried into the rear tank. After use up of fresh water, the dirty water can



Video

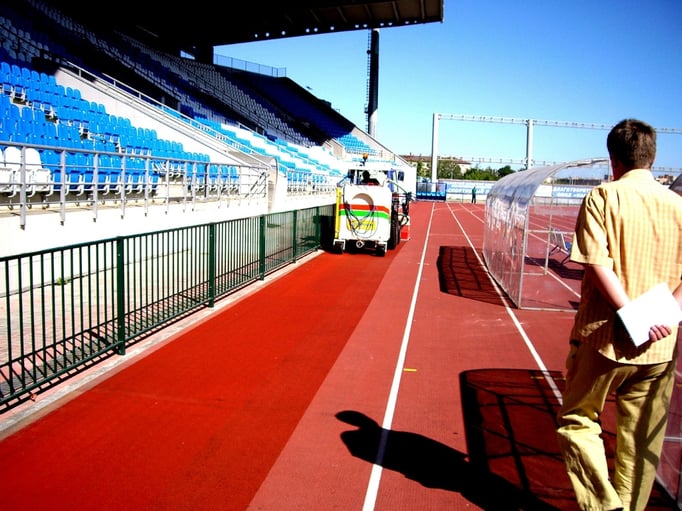

The machine in Action


Download
Leaflet Download
Prospekt Hörger A4 16-Seiter_ENG_1.pdf
Adobe Acrobat Dokument 1.2 MB
